| الـ MOQ: | 1pcs |
| السعر: | Negotiable Price |
| العبوة القياسية: | حزمة الشحن القياسية |
| فترة التسليم: | 2-3 أيام |
| طريقة الدفع: | L/C ، T/T ، PayPal ، ضمان التجارة |
| قدرة التوريد: | 1000 قطعة/شهر |
| العلامة التجارية | Belparts |
|---|---|

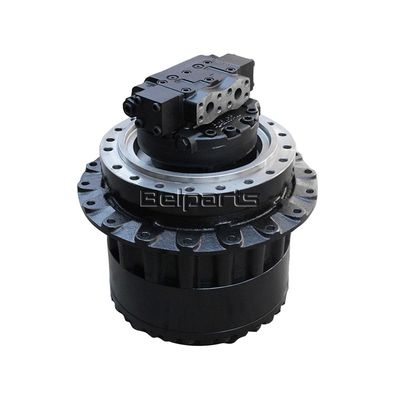

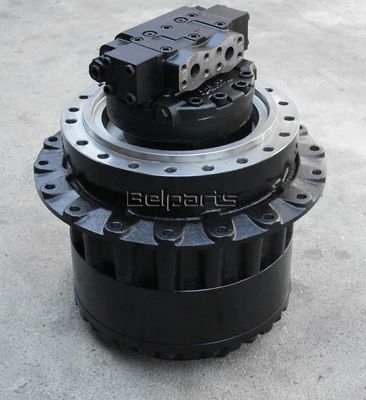

| اسم قطع الغيار | مجموعة محرك السفر للحفارات |
| الموديل | E329E |
| رقم القطعة | 333-2908 2676796 |
| الضمان | 6 أشهر |
| الحد الأدنى لكمية الطلب | 1 قطعة |
| شروط التسليم | بعد الدفع 3-7 أيام |
| شروط الدفع | خطاب اعتماد، تحويل بنكي، باي بال، ضمان التجارة |
| رقم. | رقم القطعة | الوصف | الكمية |
|---|---|---|---|
| 1 | 3E2338 | PLUG-PIPE | 2 |
| 2 | 7Y0752 | SHIM (0.80 MM THICK) | 1 |
| 3 | 7Y0753 | SHIM (1.00 MM THICK) | 1 |
| 4 | 7Y0754 | SHIM (1.60 MM THICK) | 1 |
| 5 | 0940578 | PLATE (8.0 mm THICK) | 1 |
| 6 | 0940579 | PLATE (9.0 mm THICK) | 1 |
| 7 | 0940580 | PLATE (10.0 mm THICK) | 1 |
| 8 | 0941528 | WASHER (53X84X1-MM THK) | 12 |
| 9 | 1141540 | PIN-DOWEL | 4 |
| 10 | 1688452 | BEARING (SPL BALL) | 2 |
| 11 | 1695589 | GEAR-SUN (24-TEETH) | 1 |
| 12 | 1695590 | GEAR-SUN (24-TEETH) | 1 |
| 13 | 1695592 | GEAR-PLANETARY (23-TEETH) | 3 |
| 14 | 1695593 | GEAR-PLANETARY (23-TEETH) | 3 |
| 15 | 1695601 | SHAFT-PLANETARY | 3 |
| 16 | 1695602 | SHAFT-PLANETARY | 3 |
| 17 | 1719387 | GEAR-RING (64-TEETH) | 1 |
| 18 | 1912569 | BEARING AS (CAGED ROLLER) | 3 |
| 19 | 1912570 | BEARING AS (CAGED ROLLER) | 6 |
| 20 | 1912571 | CARRIER-PLANETARY | 1 |
| 21 | 1912676 | GEAR-RING (72-TEETH) | 1 |
| 22 | 1912683 | GEAR-SUN (20-TEETH) | 1 |
| 23 | 1912684 | GEAR-PLANETARY (21-TEETH) | 3 |
| 24 | 1912685 | BEARING AS | 3 |
| 25 | 1912686 | CARRIER AS | 1 |
| 1912687 | RACE-BEARING | 3 | |
| 26 | 1912689 | WASHER (34X70X1-MM THK) | 3 |
| 27 | 1912690 | WASHER (42.3X70X1-MM THK) | 3 |
| 28 | 1994503 | COVER | 1 |
| 29 | 2071571 | SEAL GROUP-DUO-CONE | 1 |
| 2143570 | RING-TORIC | 2 | |
| 30 | 2676797 | HOUSING-MOTOR | 1 |
| 31 | 2676798 | HOUSING | 1 |
| 32 | 2676799 | CARRIER-PLANETARY | 1 |
| 33 | 2676800 | GEAR-COUPLING | 1 |
| 34 | 2676863 | SHIM (0.75-MM THK) | 1 |
| 35 | 2676864 | SHIM (0.85-MM THK) | 1 |
| 36 | 2676865 | SHIM (0.9-MM THK) | 1 |
| 37 | 2676866 | SHIM (0.95-MM THK) | 1 |
| 38 | 2676867 | SHIM (1.2-MM THK) | 1 |
| 39 | 2676868 | SHIM (1.4-MM THK) | 1 |
| 40 | 2676869 | SHIM (1.8-MM THK) | 1 |
| 41 | 2676870 | SHIM (2-MM THK) | 1 |
| 42 | 2676871 | SHIM (2.3-MM THK) | 1 |
| 43 | 0931731 | RING - RETAINING | 2 |
| 44 | 0950891 | PIN - SPRING | 6 |
| 45 | 0960433 | RING (RETAINING) | 3 |
| 46 | 0963216 | SETSCREW-SOCKET (M12X1.75X12-MM) | 2 |
| 47 | 1719298 | SEAL-O-RING | 1 |
| 48 | 1798733 | BOLT (M20X2.5X170-MM) | 16 |
| 49 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 |
| 50 | 7Y0595 | SPACER (58X79.6X6-MM THK) | 3 |
| 51 | 7Y5217 | BOLT-SOCKET HEAD (M20X2.5X70-MM) | 16 |
| 52 | 8T3282 | WASHER (HARD) (22X35X3.5mm THK) | 16 |
| 53 | 8T4123 | WASHER-PLATED (22X35X3.5-MM THK) | 16 |
| 54 | 9X6032 | BOLT (HEX SOCKET HEAD) (M10X1.5X30mm) | 12 |
| 55 | 1U8846 | SEALANT (FOR LOCATIONS A) | |
| مجموعات الإصلاح المتاحة: | |||
| 2676818 | KIT-FINAL DRIVE BEARING | 1 | |
| استخدم حسب الحاجة | |||
| مجموعة الأجزاء J المحددة J | |||
| جزء متري | |||
