| الـ MOQ: | قطعة واحدة |
| السعر: | Negotiable price |
| العبوة القياسية: | تعبئة خشبية |
| فترة التسليم: | 1-5 أيام |
| طريقة الدفع: | T/T و PayPal وضمان التجارة |
| قدرة التوريد: | 1000 قطعة |
| Attribute | Value |
|---|---|
| Machine model | EC210D |
| Pump number | K3V112DT-1E05 |
| Part number | SA 1142-00012 |

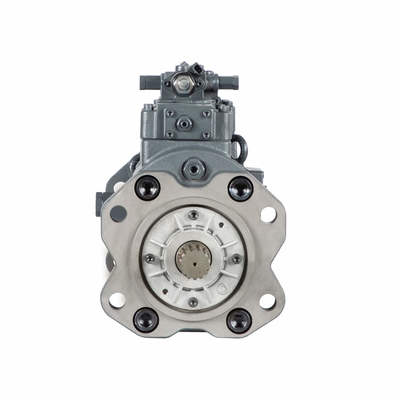

| Product name | Excavator main pump |
| Part name | Volvo hydraulic pump assembly |
| Brand | Volvo |
| Place of Origin | Guangdong, China |
The excavator hydraulic pump is the "heart" of the excavator's hydraulic system, and its performance directly determines the operating efficiency and stability of the excavator. Its core principle is to change the volume of the sealed working chamber through mechanical movement, thereby realizing the suction and discharge of liquid, converting the mechanical energy of the engine into hydraulic energy, and providing a power source for the entire hydraulic system.
| Product Name | Excavator Hydraulic Pump assy |
|---|---|
| Brand | belparts |
| Machine model | EC210D |
| Part Number | K3V112DT-1E05 SA 1142-00012 |
| Product name | hydraulic pump assembly |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| SA 1142-00012 | Pump more | 1 | ||
| 1 | SA 8230-14650 | Piston | 2 | |
| 2 | VOE 14500003 | Piston | 9 | |
| 3 | VOE 14500002 | Seat | 9 | |
| 4 | SA 8230-28580 | Cylinder | 1 | |
| 5 | SA 8230-28560 | Block | 1 | |
| 6 | VOE 14500001 | Plate | 1 | |
| 7 | SA 8230-28590 | Cylinder | 1 | |
| 8 | SA 8230-28560 | Block | 1 | |
| 9 | VOE 14500000 | Plate | 1 | |
| 10 | SA 8230-09800 | Plate | 2 | |
| 11 | SA 8230-30540 | Plate | 1 | |
| 12 | VOE 14500012 | Bushing | 1 | |
| 13 | SA 7223-00450 | Check valve more | 2 | |
| 14 | SA 7223-00500 | Seat | 1 | |
| 15 | SA 7223-00520 | Guard | 1 | |
| 16 | SA 9676-73200 | Ball more | 1 | |
| 17 | SA 7223-00460 | Check valve | 2 | |
| 18 | SA 7223-00500 | Seat | 1 | |
| 19 | SA 7223-00540 | Guard | 1 | |
| 20 | SA 9676-73200 | Ball more | 1 | |
| 21 | SA 8230-09020 | Valve more | 1 | |
| 22 | SA 8230-09100 | Shaft | 1 | |
| 23 | SA 8230-09070 | Shaft | 1 | |
| 24 | SA 8230-09660 | Coupling | 1 | |
| 25 | SA 8230-26610 | Roller Bearing more | 2 | |
| 26 | SA 8230-26700 | Needle Bearing more | 2 | |
| 27 | SA 8230-14530 | Spacer | 4 | |
| 28 | SA 8230-09370 | Plate | 2 | |
| 29 | SA 8230-09680 | Bushing more | 2 | |
| 30 | SA 8230-09710 | Spring | 18 | |
| 31 | SA 8230-09670 | Spacer | 2 | |
| 32 | SA 8230-21920 | Plate | 2 | |
| 33 | SA 8230-08940 | Support | 2 | |
| 34 | SA 8230-09350 | Cover | 1 | |
| 35 | SA 8230-08930 | Body | 1 | |
| 36 | SA 8230-08980 | Valve assembly | 1 | |
| 37 | SA 8230-09690 | Bolt |
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts, gear parts, etc. If you need other excavator parts, we also can supply as your requirements.
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
You can pay by T/T, PayPal (for small amount) and trade assurance.
